Name: Switchcraft Right Angle 3-Way Toggle Switch
Availability: OutOfStock

Out of Stock

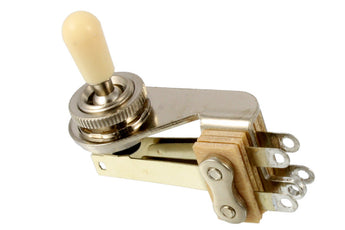

Switchcraft Right Angle 3-Way Toggle Switch

Switchcraft right Angle toggle switch. Includes nut and either cream or black switch tip, depending on stock.

Heavy-duty 3-way pickup selector switch for SG Guitars. Switchcraft® has been used by Gibson® and other great American guitar brands for decades.

Configuration

Number of Conductors: 5
Mounting Type: Panel
Mounting Feature: Right Angle
Termination Style: Solder Cup
Contact Plating: Silver
Locking: Locking
Packaging Type: Retail
Number of Stations: 3

Electrical

Current Rating: 3 Amps
Circuit-Schematic: SPST / SPDT (transfer)

Certification

RoHS Compliant: Compliant
REACH Compliant: Compliant
Brand: Switchcraft®

Each switch includes:

15/32" x 32 thread recessed knurled nut
Flat knurled nut
Toggle Switch Knob
