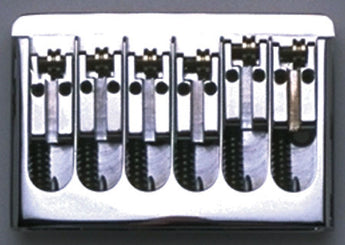

Guitar bridge - ABM non-tremolo top loading brass guitar bridge

£87.00 Sold out
Tax included.
SB-0104-010
Colour/finish: chrome

Comes with all saddles and screws.

Maximum string spacing (E-E): 57mm

Minimum string spacing (E-E): 51mm

2-1/8 inch spacing

Radiused top

Top loading



Bridge plate

Length: 73mm

Width: 50mm

Height: (inc. lip at centre): 11.8mm

              (inc. lip at ends): 10mm

      (not inc. lip at centre): 5.2mm

       (not inc. lip at ends) :4.1mm



Distance between: mounting holes: 1st and 2nd : 21.6mm

                                                      : 2nd and 3rd : 10.6mm

                                                      : 3rd and 4th: 21.6mm

                             : intonation screw holes (E-E) : 54mm

                             : string screw holes (E-E)  : 54mm



Saddles

Length (inc. roller wheel) : 20.5mm

Width: 9.8mm

Height (inc. roller wheel): 6.6mm

Screws

Saddle height screw (metric): length: 6mm (same as GS-3349-003)

                                                         : diameter: 2.9mm

Intonation screw (metric) Top E and B strings: length (inc. head): 27mm (same as GS-3324-005)

                                                                       : diameter: 2.9mm

                                        Bttm E, A, D and B: length (inc. head): 22mm

                                                                     : diameter: 2.9mm

Intonation spring for: Top E and B strings: length: 20mm

                                                                 : diameter: 4.3mm

                                : Bttm E, A, D and B: length: 15mm

                                                               : diameter: 4.3mm

Bridge mounting screw: length: 25mm

                                    :diameter: 2.8mm



Colour/finish: chrome
